LED Embroidered Art
I love to make art. I love to draw, to paint, to sew, to embroider and to knit. I like to attend musicals and theater performances, and I loved tap dancing in college. The creative side of my INFJ personality needs some sort of artistic outlet.
Thankfully, as I have delved more deeply into the study of robotics, programming and electronics, I see more ways to mesh art with simple technology. In fact, there was a whole field of study at MIT with a focus on high-tech and low-tech. How much fun do you think those grad students have?!
LED Embroidered Art
I was messing around with a conductive ink pen and some leftover Chibitronic LED stickers. Voila! What if I hand-embroidered a picture and found a way to light it up?
First, I brainstormed something to embroider on card stock. I was inspired by fireworks, so I drew out the pattern and made sure to poke holes in the card stock (with my needle) before I tried to embroider. I also determined where I would put the LED lights. I knew I wanted them in the middle of my embroidered fireworks.
Adding the Lights
After I finished the embroidery, I started work on the LED lights. I knew I needed parallel circuits to power the three LEDs, so I sketched out my circuit path onto another piece of cardstock. I made sure to mark where the LEDs would line up.
Then, after a little bit of testing and rummaging through my electronics stash, I came up with a Lilypad battery holder (with embedded on/off switch) and some conductive thread. After a failed attempt at soldering the thread to the conductive ink, I settled for a piece of Scotch tape.
Conductive Ink
Draw the lines with the conductive ink and be sure to mark the positive and negative flow of energy. The LED stickers have to placed in a certain way for the bulbs to light up.
Voila!

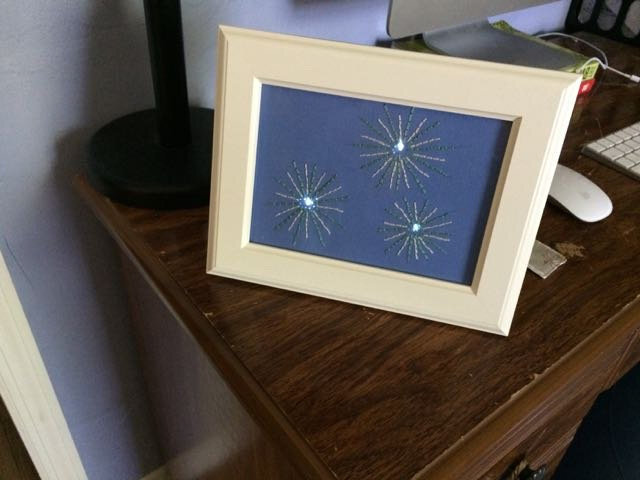

Place the LED card behind the embroidered card and enclose in a frame, making sure to allow the battery to be connected to the backside of the frame. That’s the purpose of the conductive thread. Hot glue the battery holder onto the back of the frame and your light-up LED embroidered art project is ready to display. Feel free to “wow” friends, in-laws, and hopefully, the parents of the kids you teach.
